Product Description
Dolby Atmos® and MultiBeam™ Surround Sound
Immerse yourself in theater-quality 3D surround sound. Hear extraordinary sound effects from everywhere in the room, without the need for extra surround speakers.
Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.
BAR 500 590W output power - Image
590W output power
With 590 watts of total system output power, the JBL Bar 500 transforms your movies, music and games into immersive sound experiences.
What's on the menu tonight? Movies, music or gaming? The JBL Bar 500 brings your movies to life with MultiBeam™ and Dolby Atmos® 3D surround sound. While PureVoice technology optimizes voice clarity to ensure you never miss a word. Feel the thrilling bass from the wireless 10" subwoofer. And with AirPlay, Alexa Multi-Room Music (MRM) and Chromecast built-in™, you've got over 300 easy streaming options to choose from, whether you want to dance or you're ready to relax. Whatever you're in the mood for, the JBL Bar 500's got you covered.
General Specifications
Power supply: 100 - 240V AC, ~ 50/60Hz
Networked standby power: < 2.0 W
Operating temperature: 0°C - 45 °C
Audio Specifications
Total speaker power output (Max @THD 1%): 590W
Soundbar output power (Max @THD 1%): 290W
Subwoofer output power (Max. @THD 1%): 300 W
Soundbar transducer: 4x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters
Subwoofer transducer: 10” (260mm)
Frequency response: 35Hz - 20kHz (-6dB)
Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Soundbar dimensions (W x H x D): 1017 x 56 x 103.5mm
Subwoofer dimensions (W x H x D): 305 x 440.4 x 305mm
Soundbar weight: 2.8kg
Subwoofer weight: 10 kg
Packaging dimensions (W x H x D): 1105 x 370 x 475 mm
Packaging Weight: 16.2 kg
Control and Connection Specifications
USB port: Type A
USB rating: 5V DC, 0.5A
Supporting file format: MP3
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate: 16 - 48 kHz
MP3 bitrate: 80 - 320 kpbs
Bluetooth version: 5.0
Bluetooth profile: A2DP 1.2, AVRCP 1.5
Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
Bluetooth transmitter power: <15 dBm (EIRP)
Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range: 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power: < 20 dBm (EIRP)
5G Wi-Fi transmitter frequency range
5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
2.4G wireless transmitter frequency range: 2406 - 2474MH
2.4G wireless transmitter power: <10dBm (EIRP)

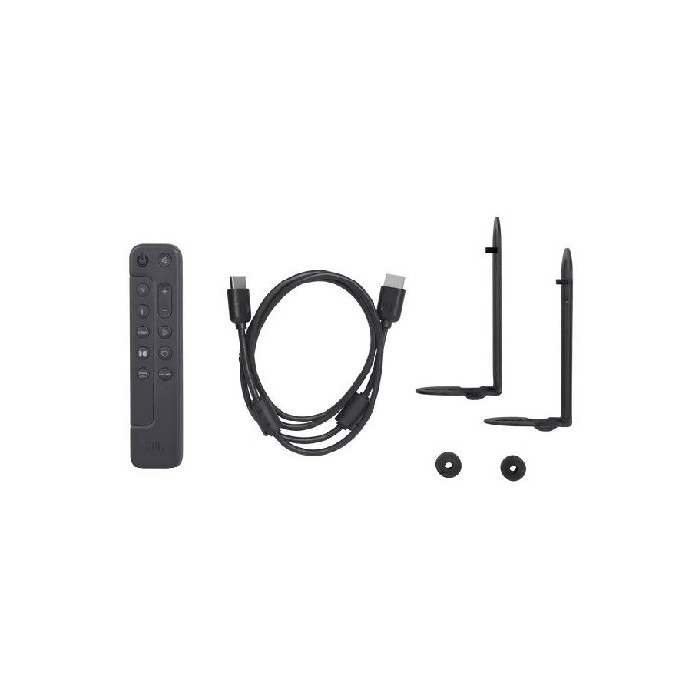

What's in The Box?
1 x Main Soundbar
1 x Wireless subwoofer
Remote control with 2 x batteries
Power cords (up to 8pcs depending on region SKUs)
1 x HDMI cable
2 x L-shape wall-mount bracket with screws
Quick start guide
Safety Instruction and Warranty Card
Wall mount template
