Product Description
Bezelless Design
Natural Colour Enhancer
Noise Reduction
DTS Virtual X
Vidaa Smart OS
WiFi Built in

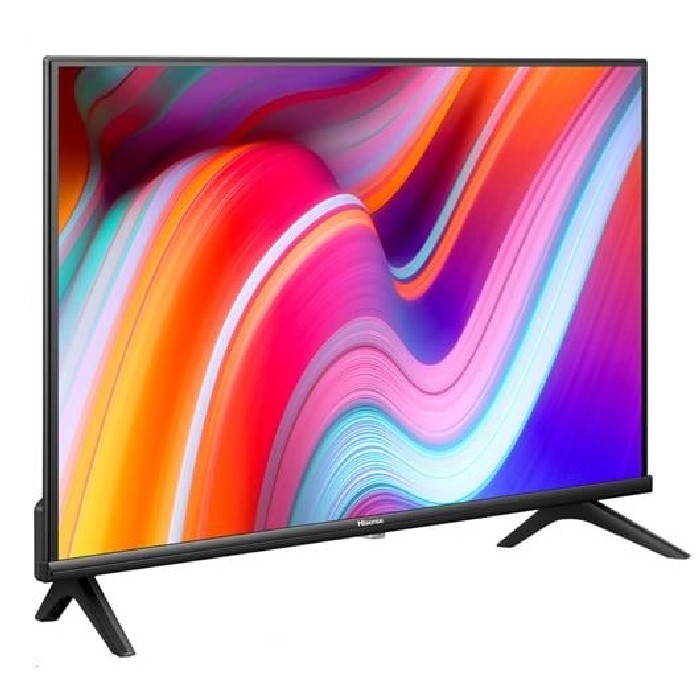

Description 80cm (32″ ) Direct LED Television
Specifications form version HA220120
Circulation Restricted, internal use only
Status Confirmed
Revision number 1
Date 2022/01/20
Issued by Al
Image display
Panel manufacturer Hisense
Panel model LCM: JHD315H1H51-T0L2B1, Open Cell : T320XVN02.H
Active display area, horizontal dimension 697,685
Active display area, vertical dimension 392,256
Screen size (rounded to nearest integer) 80
Screen size (rounded to nearest integer) 32
Display technology LCD/ LED lit
Backlight source Direct LED
Resolution (Horiz x Vert) 1366*768
Screen curvature radius –
Colour depth 8bit
Image refresh frequency 60
Smooth motion rate 60
3D image –
Typical brightness of white 250
Native contrast ratio 3000 : 1
Viewing Angle (Horiz / Vert) 178/ 178
Response Time 8

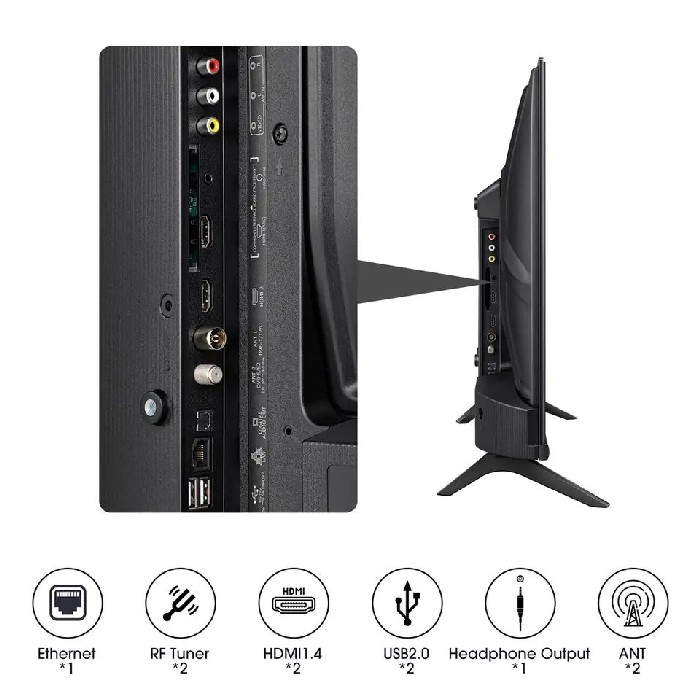

Connectivity
RF- Radio frequency input 1
AV input 1
AV output 0
USB interface type 3.0 (Qty / List….) 0
USB interface type 2.0 (Qty / List ….) 2/ USB1, USB2
Optical digital audio output (SPDIF) 1
Earphone jack 1
HDMI ports
HDMI inputs 2
HDMI type 8K@60Hz No
HDMI type 4K@60Hz with HDCP version 2.2 No
HDMI 2.1 compliant input (4K@120Hz) No
Enhanced Audio Return Channel ( eARC) Yes
CEC- Consumer Electronics Control via HDMI Yes
Smart TV
Ethernet port (RJ45 connector) 1
Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ax, ..} b, g, n
Wi-Fi bands 2,4
DLNA compliance Yes
Anyview ( Screen Sharing) Yes
BVOD services (Iview, SBS on Demand, 9Now, 7Plus, Tenplay) Iview, SBS on Demand, 7 Plus, 9 Jumpin
(Tenplay available from Playsore)
Installed Applications {List ……} Netflix/Youtube/Prime Video/Foxtel/Stan/ABC iview/Kayo/Tubi/SBS ON DEMAND/Facebook Watch/NBA
Freeview Plus – HbbTV 2.0 Yes
Web browser [Chrome | Opera | Other] Odin
Tuner/ Broadcasting
Digital broadcating (DVB-T / DVB-T2) Yes / Yes
Video decoder (MPEG2 / MPEG 4) Yes / Yes
LCN- Logical channel number and DTV Service name support Yes
Teletext / Teletext signal interruption (TAB compliant) Yes / Yes
Subtitles Yes
EPG- Electronic programming guide, 7 days for all services Yes
Audio description (vision impairment aid) Yes
Parental rating lock Yes
Analog Tuner Yes
Zoom function settings Auto /16:9 / 4:3 /21:9/ Movie Zoom/Dot to Dot
Audio power output per channel 6
Number of speakers (Tweeter / Midrange / Woofer) 2 /0 /0
Automatic volume level (AVL) Yes
Audio equalizer Yes
Dolby Digital Yes
Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….} DTS Virtual X
Lip-sync adjustment Yes
Sound mode Stand，Cinema…….
On/off timer Yes
Power off if no signal Yes
Sleep timer Yes
Program lock Yes
OSD transparency control Yes
User interface VIDAA U7
Software version OSD indication Yes
Legal requirements: Disclaimer / Acceptance of Terms Yes / Yes
Favourite channels list Yes
Electronic point of sales (E-POS) Yes
OTA- Over the air software updates Yes
Screen mirroring {Miracast, Anyview Cast, …} Screen Sharing
Smartphone remote control application {VIDAA app, …} Yes
Replaceable demo video for Store mode Yes
Remote control via serial port No
USB media player
Personal Video Recorder Yes
Time Shift Yes
Protected Hotel lock submenu (Password / fixed code) No / Yes
Clone function for programs, sound and image settings. Yes
Sub-menu lock, including tuning lock Yes
Keyboard lock Yes
Maximum volume lock Yes
Power on volume Yes
Power on, apply default sound/image settings No
Power on source selection Yes
Power on RF channel selection Yes
Power on mode (On / Standby / Last) Yes / Yes / Yes
Inputs access (Enable / Disable) Yes
Dual Tuner No
Colour (Front bezel, rear, stand) Black / Black / Black
Speakers mounted in enclosure Yes
Mains power switch No
Swivel base No
Compact packaging Yes
Supply range [Voltage / Frequency ] 100 ~ 240V / 50Hz
Standby consumption < 0.5W Maximum time delay Power On to sound an image 30 Stand area (Width / Depth) 688×186 Wall mount dimensions (Horiz x Vert) 100×200 Wall mount, screw thread M6/ 10mm VESA compliance Yes Detachable power cord No Power cord length 155 Remote controller (Technology / Part number ) IR /EN2V36H Battery (size / quantity) AAA / 2 Dimensions with stand (W x H x D) 726×479×186 Dimensions without stand (W x H x D) 726×430×85 Carton box dimensions (W x H x D) 848×122×515 Net weight (with stand / without stand) 3.8 Kg/3.7 Kg EMC- Electromagnetic Compatibility Yes CB- Electrical safety Yes HDMI Yes (Hisense internal test) Dolby Digital Yes
