Product Description
Design hob with a fully integrated, totally flush air-inlet.
✓ combiZone – Connect two induction zones together for large cookware.
✓ touchSlider - Allows you to control the power level with one touch of your finger.
✓ diamondProtect- Keeps your hob looking new and pristine, resisting everyday scratches.
✓ inductionAir Plus noise: Minimal noise without compromising suction power.
✓ Easy cleaning – Minimal cleaning effort for your built-in
✓ extractor.
Features
• 80 cm: space for 4 pots Flexibility of cooking zones
• 2 combiZones
• : use bigger cookware by connecting two classic cooking zones into one large zone.

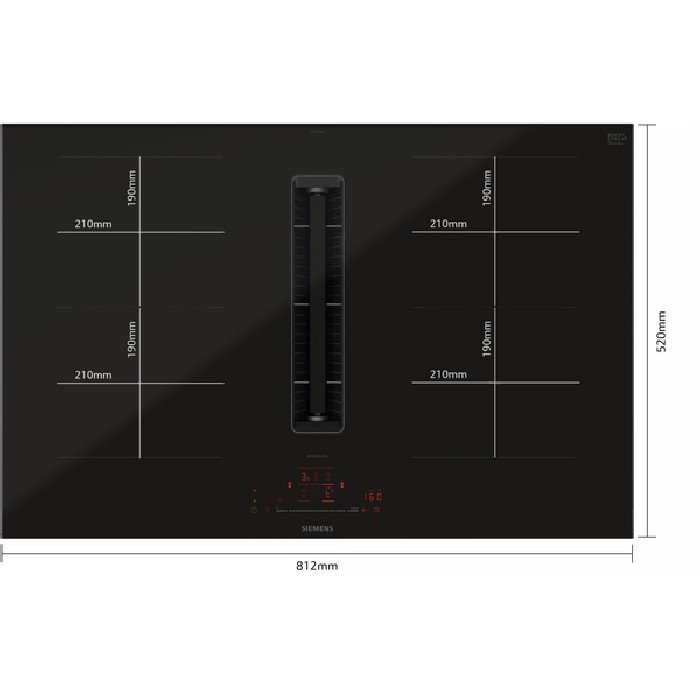

• Cooking zone front left: 190 mm, 210 mm, 2.5 KW (max. power 3.7 KW)
• Cooking zone rear left: 190 mm, 210 mm, 2.5 KW (max. power 3.7 KW)
• Cooking zone rear right: 190 mm, 210 mm , 2.5 KW (max power 3.7 KW)
• Cooking zone front right: 190 mm, 210 mm, 2.5 KW (max. power 3.7 KW)
Usage convenience
• touchSlider: directly control the power with the imprinted touch bar.
• Favourite button: directly access favourite functions with a configurable button (available with connected Home Connect account).
• 17 power levels: precisely adapt the heat with 17 power levels (9 main levels and 8 intermediate levels).
• Keep warm, selectable via Favourite button/Home Connect App (for appliances connected to Home Connect account): keep dishes warm at preset low power level.
• Switch-off timer (on appliance): switches off the cooking zone at the end of the time set (e.g. for boiled eggs).
• Count-down-timer (can be chosen instead of switch-off timer): an alarm sounds at the end of the time set (e.g. for pasta).
• Sound volume adaptable to personal preference and needs.
Time saving & efficiency
• powerBoost for all zones: boil water more quickly thanks to 50% more energy than at the highest standard level.
• panBoost, selectable via Favourite button/Home Connect App (for appliances connected to Home Connect account): heat up pans more quickly than at the highest standard level while protecting the pan coating.
• quickStart Function: when switching on, the hob automatically selects the cooking zone with cookware (placed in off-mode).
• reStart Function: in case of unintentional switch-off, restore all previous settings by switching on the hob again within 4 seconds.
Cooking assistance
• fryingSensor Pro: prevents scorching with the automatic temperature regulation of the integrated sensor.
• only via HC app: easily find the right temperature setting for a certain dish via the Home Connect app.
Connectivity
• Home Connect (only in countries where Home Connect service is available): check if the hob is switched off even when not at home, and find recipes or additional functions in the Home Connect app.
• Smart home trigger, via Favourite button (available with connected Home Connect account): open up the smart universe from your cooktop (partner service required).
• Updateable appliance (available with connected Home Connect account): keep appliance always up to date with latest status of software.
Design
• diamondProtect: scratch-resistant glass ceramics.
• For an optimal visual appearance, we recommend the light sources halogen, LED or daylight. Neon light & energy saving bulbs are not recommended.
• Side profiles, Studio Line, black design
• studioLine exclusive zone printing: minimalistic design thanks to dark colour of zone printing.
Safety
• Residual heat indicator (2 stage): indicates which cooking zones are still hot or warm.
• Childproof lock: prevent unintended activation of the hob.
• Pause function: pause the heating process, e.g to answer the door.
• Main Switch: switch off all cooking zones at the touch of a button.
• Safety switch-off: for safety reasons, heating stops after a preset time without interaction.

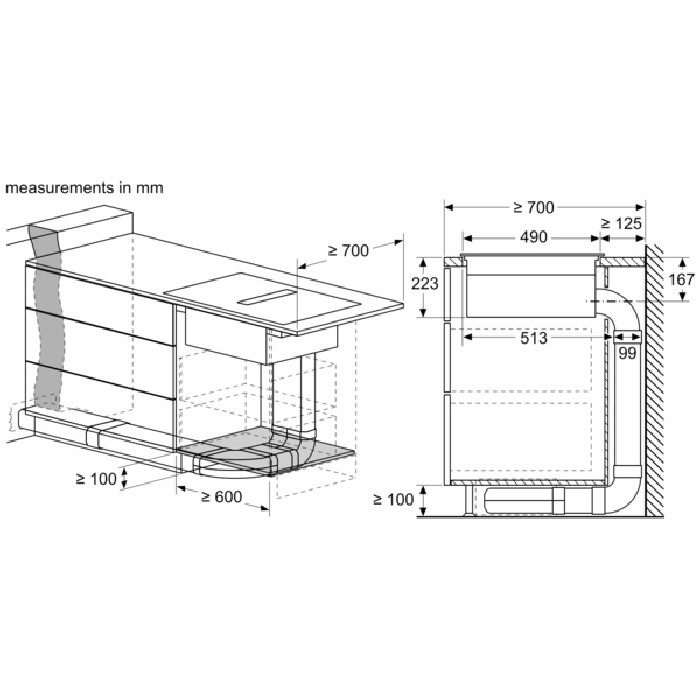

Installation
• Dimensions of the product (HxWxD mm): 223 x 812 x 520
• Required niche size for installation (HxWxD mm) : 223 x 750 x (490 490)
• Min. worktop thickness: 16 mm
• Connected load: 7400 W
• powerManagement function: limit the maximum power if needed (depends on fuse protection of electric installation).
• Power cord: 1.1 m without plug, loose insert in packaging (electrical connection by electrician necessary)
Accessories
• Clean Air Plus odor filter, Slider for unducted recirculation included
• Installation into 60 cm floor cupboard possible
Integrated ventilation downdraft system
• Induction cooktop with fully integrated high-performance downdraft extractor.
• Suitable for ducted or recirculated extraction configuration (incl. differentiated software modes). Installation accessories for unducted recirculation, among these four cleanAir Plus odour filters and a telescopic slider element, are included in the cooktop. Accessories for other installation options are available, details in the planning notes.
• Aesthetically integrated fully flush air intake design with floating, heat resistant glass ceramics element for free movement and placement of cookware.
• - Automatic switch-on of ventilation system when a cooking zone is used.
• - Automatic delayed shut-off after cooking to erase residual odors
