Product Description
The Siemens LI97SA531 concealed hood belongs to the iQ300 series. With a typical style, the Siemens extractor hoods give configuration to a high-quality design that is absolutely harmonious with the other appliances.
Extractor hoods.
With a distinctive style, characterized by black glass and steel, Siemens extractor hoods give shape to a sophisticated design that blends perfectly with other appliances. Whether it's a wall or wall hood, a suspended installation above an island, integrated into a hob or hidden in a wall unit, our range of extraction systems offers you all the creative freedom you need. All Siemens extractor hoods ensure power and excellent performance with a very low noise level. Siemens has achieved these results thanks to unique sensor technology and the use of the iQdrive brushless motor. The innovative technical features, present in every type of extractor hood, make the various models become important elements for managing the air quality inside the home. With Siemens, even the kitchen hood becomes a smart appliance: it communicates with the hob and can be controlled remotely, with your mobile phone, thanks to the Home Connect App.

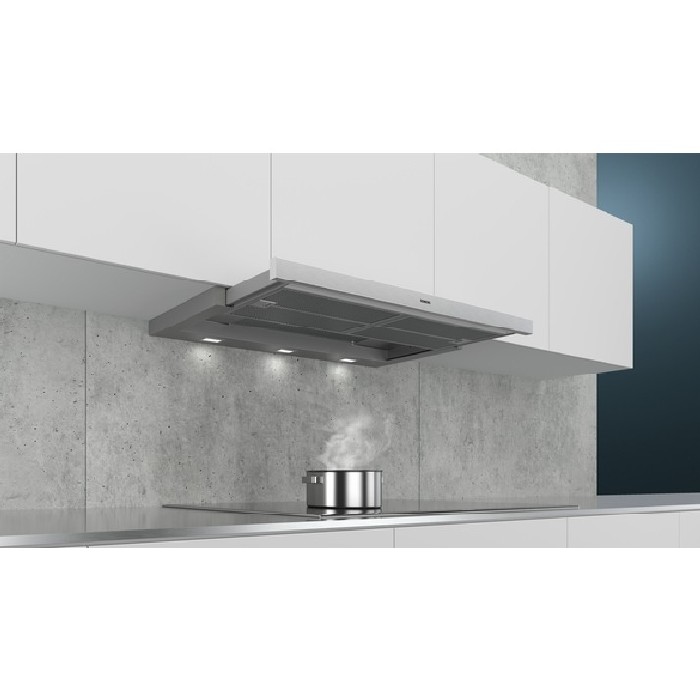

The telescopic hood integrates perfectly under the kitchen cabinets, pulling it out if necessary.
IQdrive motor: power and silence with 10 years warranty.
LED lighting: perfect and efficient visibility during cooking.
Extremely silent.
IQdrive engine.
Siemens achieves up to 980 m3 / h of power in its suction solutions to quickly eliminate fumes while being efficient and significantly reducing noise. The combination of iQdrive ™ motor and LED lighting stands out for its high efficiency, as it assumes energy savings of up to 80% compared to models with conventional motor and halogen lighting.

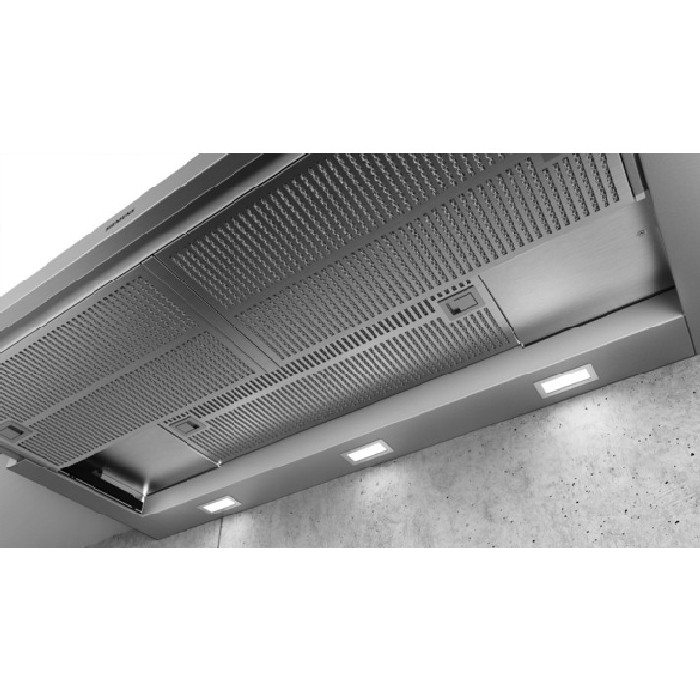

Led illumination.
In addition to being efficient, this lighting achieves perfect visibility during cooking, creating a unique atmosphere in your kitchen.
Technical data
Type: Telescopic
Approval certificates: CE, VDE
Power cable length (cm): 175
Built-in niche dimensions: 385 mm x 524 mm x 290 mm
Dist. Min for electric cooking zones: 430
Gas cooking zones dist min: 650
Net weight (kg): 13.127

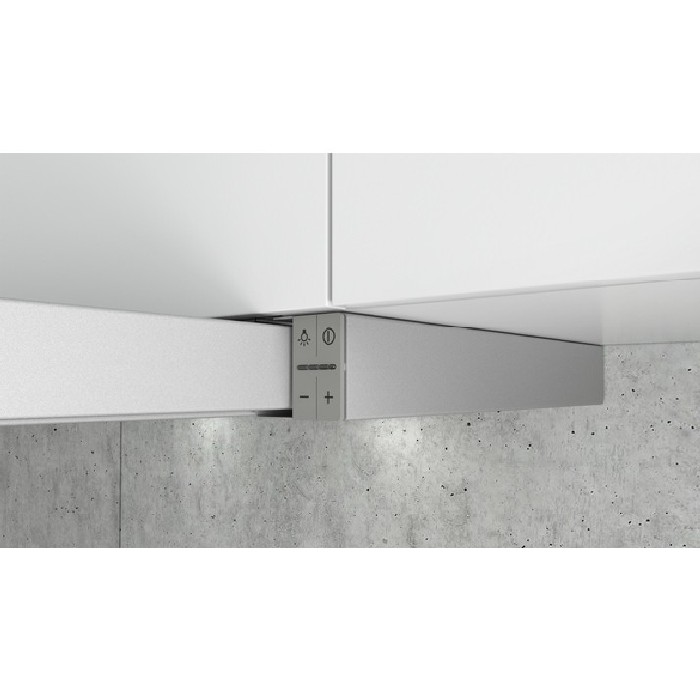

Type of control: electronic
Maximum air extraction (m3 / h): 397
Maximum recirculation air extraction at intensive level (m3 / h): 476.0
Maximum recirculation air extraction (m3 / h): 294
Maximum air extraction at intensive level (m³ / h): 729
Number of lamps: 3
Noise pollution level (dB (A) re 1 pW): 53
Air outlet diameter: 120/150
Grease filter material: washable stainless steel
EAN number: 4242003880272
Connection power (W): 146
Electric current intensity (A): 10
Voltage (V): 220-240
Frequency (Hz): 50; 60
Plug type: Schuko with earth
Type of installation: integrable
Features
Width 90 cm
Steel
Energy efficiency class A (in the range from A +++ to D).
IQdrive ™ engine with 10 year warranty
Electronic control. Also, you can choose different fronts both white (DSZ4652) and black (DSZ4656)

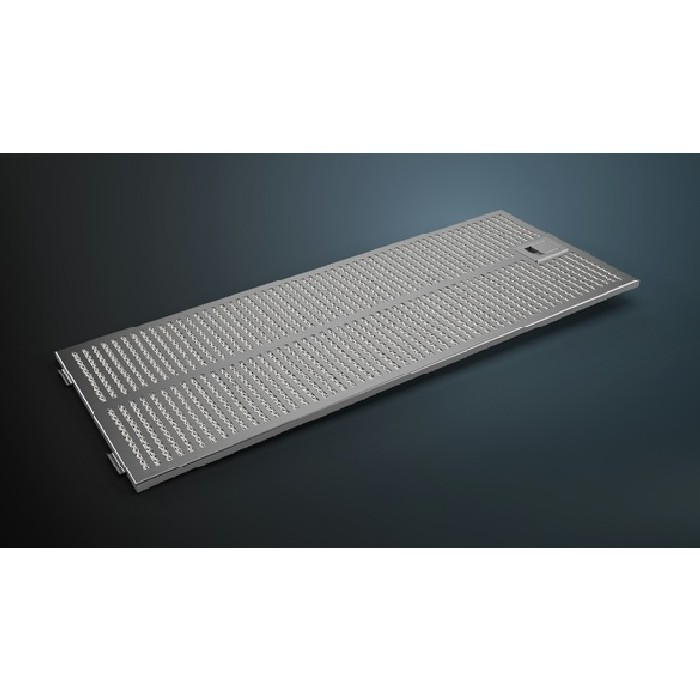

Dishwasher safe stainless steel filters
4 extraction powers
Intensive power with automatic retraction
Maximum extraction capacity according to UNE / EN 61591: 397 m³ / h
Sound power level 3: 53 dB (A)
Automatic timed shutdown
Led illumination
Possibility of installation in air outlet to the outside or in recirculation.
For installation of recirculation, recirculation kit or activated carbon filter (accessory).
Easy installation system.
Measurements
Device dimensions (height x width x depth): 426 x 898 x 290 mm
Niche dimensions (height x width x depth): 385 x 524 x 290 mm
Check valve included
Optional accessories
LZ49850 Black / Stainless steel front design
LZ49601 Accessory to hide hoods 90cm
LZ49200 Hood accessories
LZ45650 Traditional recirculation set
