Product Description
The Siemens ER9A6SH40 hob is equipped with a touch display, which allows you to set the timer or adjust the power and lighting of the hood. With nine incremental and uniform flame levels, our patented stepFlame technology allows you to control the power.
Specifications
Main surface material: Tempered glass
Main Color: Black
Frame type: Flush or surface mounted
Flush Mount: Yes
Support grid material: Separable cast iron
StepFlame - Precise flame adjustment: Yes
Display: Yes
Display type: Electronic power level display
Dishwasher safe grids: Yes
Control panel location: Front
Control Panel: Illuminated, Removable, Jumper Knob, Front
Hob ignition: knob ignition
Timer: Count-down timer (on the appliance)
Home Connect for Wi-Fi connection: Yes
Home Connect Features: Remote Diagnostics, Remote Control
CookConnect System - Hood control from the hob: Yes
Intelligent hood automatic: yes, with all hoods with the same function and connected to the same Home Connect account.
Software update capability (available for Home Connect accounts): Product always up to date with the latest software: Yes
Power consumption standby mode/display off: 0.5 W
Power consumption standby mode/network connected: To disable the WiFi module, please refer to the product user manual.: 2.0 W
Safety device: GasStop thermosafety
Property
Number of cooking zones: 5
Cooking zone power: 1 x 1.0 KW, 1 x 3.0 KW, 1 x 5.0 KW, 2 x 1.75 KW
Cooking zone type: Semi-rapid heat, Semi-rapid heat, Auxiliary heat, Rapid heat, Triple crown wok heat
Gas connection rating: 12500 W
Gas type: Natural gas H/E/(L) 20 (25) mbar
Alternative gas type: methane L/LL G25/20mbar (DE), methane H 25 mbar (HU), methane L 25 mbar (NL), liquid gas G30,31 28-30/37mba, liquid gas G30 37 mbar (PL), liquid gas 50 mbar
Nozzle set included for alternative gas type: Liquid gas G30,31 28-30/37mbar
Power cord length: 1.00 m

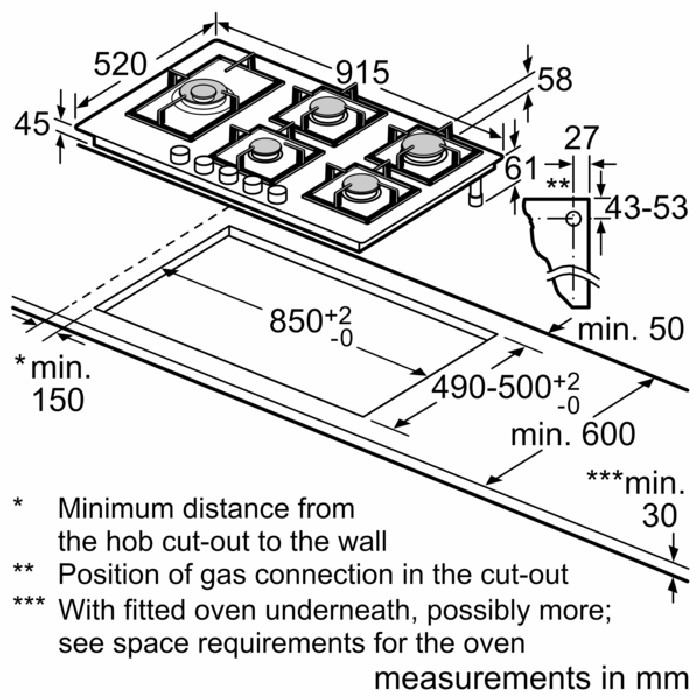

Installation
Hob dimensions (Width x Depth x Height): 915x520x54mm
Installation compartment dimensions (Width x Depth x Height): 850x490-500x45mm
Minimum thickness of the worktop: 20 mm
Minimum thickness of the top for flush installation: 30 mm
Packaged product dimensions (Height x Width x Depth): 170x1110x660 mm
Control the plan with a simple touch
Siemens gas hobs have a touch display that allows you to set the timer or adjust the power and lighting of the hood (if connected). You can set the timer or adjust the lighting and power of the hood (with connected hoods).

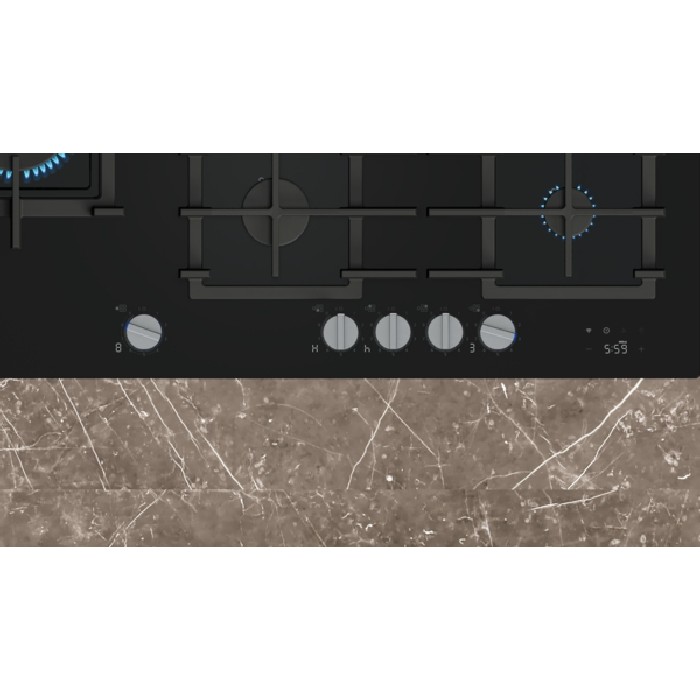

Heat control at your fingertips
With the digital display on our gas hobs, you can check the power level at a glance. Next to the knob, it indicates the heat level if the hob is on and warns you of any residual heat when it is off. This allows you to concentrate on your culinary masterpieces without interruptions, with maximum convenience and safety.
Just guess, cook with precision
With nine incremental and uniform flame levels, our patented stepFlame technology allows you to control the power with unmatched precision, for greater creativity in the kitchen. Actual product may vary from that pictured.
Smart connection, great convenience
Just focus on your dishes and the fresh air in your kitchen. With the Intelligent hood automatic function, you don't have to constantly turn the hood on and off, or adjust its settings when the steam increases. In fact, the hood automatically adjusts the suction level based on the power output of the hob. Simply pair the hood with the hob via an account in the Home Connect app.
Data sheet
EAN 4242003948408
Model ER9A6SH40
Line Iq700
Category Gas hob
Type of collection Flush-mounted
Built-in measure 85 x 49 cm / 85 x 50 cm
Other Front controls
Finishing Black glass
Width 92 cm
Number of fires 5
Depth 52 cm
Power 12500 W
Commands Knobs / Touch control
Connectivity Wifi
Grills Cast iron
