Product Description
With the Siemens HB774G1B1 electric oven you can create delicious dishes thanks to the many recipes recommended by the app and the convenient Home Connect functions. Thanks to the integrated pyrolytic and hydrolytic system, cleaning the oven will be quick and easy.
Data sheet
EAN 4242003901809
Model HB774G1B1
Line Iq700
Category Electric oven
Type Single fan
Capacity 71 L
Built-in measure 56 x 59 cm / 56 x 60 cm
Cleaning Hydrolytic / Pyrolytic
Finishing Black
Width 60 cm
Maximum temperature 300 °C
Height 60 cm
Features Multi-tray cooking / Air frying / Pizza function / Fan grill / Automatic programs
Commands Display / Touch control
Connectivity Wifi
Absorption 0.69 kW / 0.87 kW
General informations
Type of installation: under the worktop, column-mounted
Hot plate control: no
Black colour
Screen: TFT touch display
Number of heating types: 13
Heating methods
Gentle top/bottom heating
Bottom heating
CoolStart function
Pizza function
Convection grill
Hot air
Large surface grill
Small surface grill
Top/bottom heating
Low temperature cooking
Keeping warm
Gentle convection
Preheating
Performance
Temperature range (°C): 30-300°C
Cooking with the addition of steam: no
Integrated purification system: Pyrolysis+Hydrolysis
Guides: additional equipment
Door opening: dampened hinge at the bottom
Usable capacity (compartments) - NEW DIRECTIVE (2010/30/EC): 71 l
Energy efficiency class: A+
Safety
Electronic door locking
Start button
Residual heat indicator
Oven safety switch
Door contact switch
Child safety
Integrated accessories
1 enamel tray
1 x Combo Grill
1 universal tray

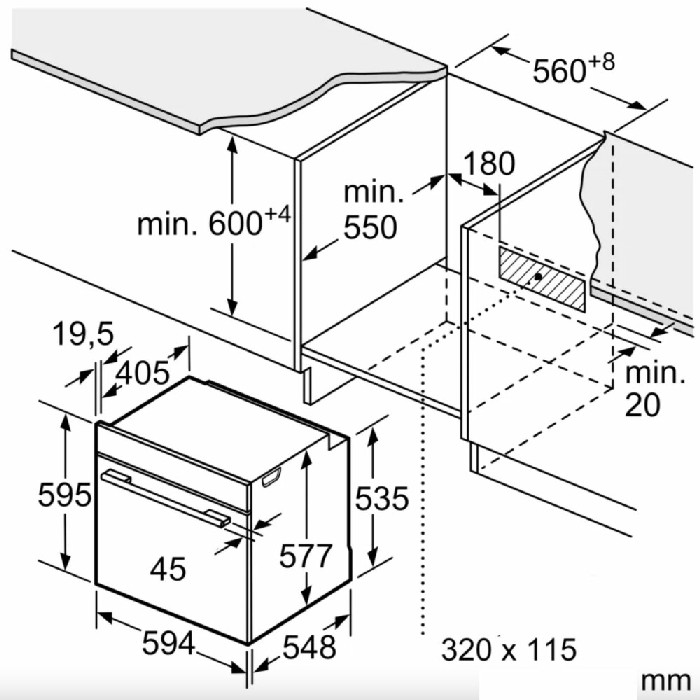

Dimensions and weight
Device dimensions (HxWxD): 595 x 594 x 548 mm
Minimum installation height (mm): 585 mm
Maximum height of the niche: 595 mm
Minimum installation width (mm): 560 mm
Maximum installation width (mm): 568 mm
Installation depth (mm): 550 mm
Net weight: 38.3 kilograms
Plug type
Plug: Schuko/Garda with earthing
Connection cable length: 120.0cm
Voltage: 220-240V
Power Connection: 3,600W
Intensity: 16A
Net
Smart devices with Home Connect: yes
Connect at home: iService remote diagnostics, remote control and management
Standby power consumption when display is off: 0.5W
Power consumption standby/network active (refer to the user manual for information on how to disable the Wi-Fi module): 2.0 W
Auto standby time when display is off: 20.0 minutes
Auto Standby/Connection Time: 20.0 minutes
Comfort
coolStart: yes
Fast heating: yes
Pizza adjustment: yes
Food selection system: yes
Hot air heat exchanger: 3D convection (uniform heat distribution on three levels)
Crispy Function: No
Air frying function: yes
Oven assistant with voice control: yes (function available with Home Connect and accounts linked via other service providers, e.g. Alexa required)
Oven chamber lighting: halogen
Home Connect
Do you want to exploit the full potential of your oven? Connect your oven to your registered Home Connect account (www.home-connect.com) to control it from anywhere and use digital services, even by voice using Amazon Alexa or Google Assistant. Start and end cooking programs, change settings and manage your favorites, without having to be in the kitchen. The settings are synced between the app and the oven and you will receive push notifications when the program ends. Downloadable software updates ensure full functionality of the oven. Enjoy cooking on your own terms.
Delicious recommended recipes
Searching for universal foods that fit your lifestyle can be overwhelming. Now you no longer have to search long and hard for the right recipe: discover an inspiring selection of delicious recipes with Home Connect and partner apps like Foodfittery. Simply select a recipe and transfer the settings directly to the oven. Enjoy flexible meal preparation and, above all, delicious food. To use this feature, simply connect your oven to your registered Home Connect account.
activeClean® function
Forget about cleaning the oven manually. Thanks to the activeClean® function the oven now cleans itself. Just remove the dirt and the oven will do the rest. At the push of a button, the high temperature will turn all the impurities resulting from cooking, frying and grilling into ash. Wipe the inside with a damp cloth and you're good to go.
Automatic programs
Are you constantly checking the oven to see if the food is ready? The pre-installed and automated cooking and frying programs in the oven guarantee perfect preparation of the dishes. Simply select your dish and let the oven sensors automatically control the process. You can also set the desired result by choosing from many preset suggestions. The oven automatically selects the appropriate settings and turns off when the food is ready. This allows you to relax and enjoy cooking.
Multilevel cooking
Get the results you want every time you cook with 3D Convection. Use all three levels freely, simplifying your work. Bake cakes or biscuits on three levels at the same time and enjoy perfect results every time.
FastPreheat
The fastPreheat function heats the oven quickly. CoolStart, on the other hand, speeds up the preparation of frozen dishes by eliminating preheating: thanks to this your dishes are ready exactly at the time indicated on the package. Both smart features are useful when you're short on time.
User support
Installing a new furnace can be challenging. With the Home Connect app, knowing your oven is as easy as preparing a frozen pizza. The interactive user manual helps you find solutions, tips and tricks to get the most out of your oven. If you have a problem with your oven, simply use the remote diagnostics which will explain the next steps. Siemens Customer Service will access the device with your consent to identify and correct the error. To use it, simply connect your oven to your registered Home Connect account.
Cooking assistant
Not always sure which program is suitable for which dish? Simply tell your oven via Amazon Alexa Voice Control which dish you want to prepare. Or, alternatively, via the Home Connect app. The oven assistant will then suggest the appropriate settings or programs and move directly to the chosen ones - a shortcut that really saves time. To use Oven Assistant, simply connect your oven to your registered Home Connect account.
UmidoClean Plus
Perfect for quick cleaning: with humidClean Plus, cleaning your oven is easier than ever. Simply add a drop of detergent to 400ml of water. Pour the rinsing solution into the center of the fully cooled chamber bottom. Set the humidClean Plus cleaning program and let the oven do the rest. At the end of the program, the softened dirt can be easily removed using a dish sponge or soft brush.
softMove door opening
The comfortable soft door mechanism eliminates slamming and does not require strong pressure: you can close it easily even with your hands full.
