Product Description

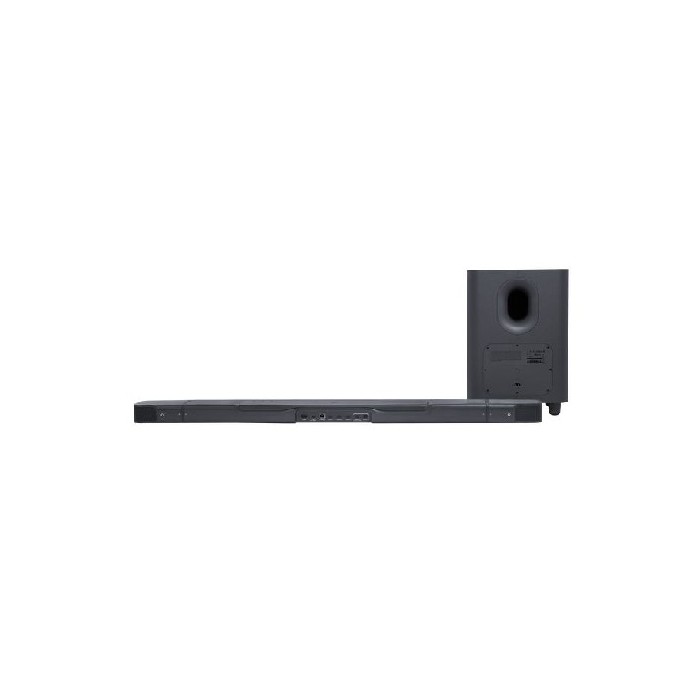

BAR 1000 True Dolby Atmos®, DTS:X and MultiBeam™ Surround Sound - Image
True Dolby Atmos®, DTS:X and MultiBeam™ Surround Sound
Immerse yourself in cinematic 3D sound. Featuring two high-firing drivers in the main soundbar and two more in the detachable speakers, the JBL Bar 1000 offers true Dolby Atmos® and DTS:X, along with MultiBeam™ for an enhanced 3D surround sound experience.

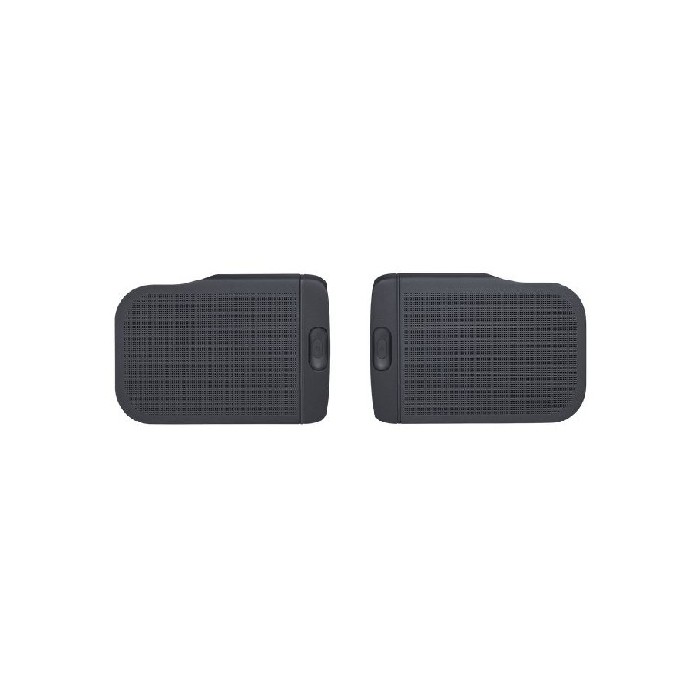

True surround sound with detachable surround speakers
Enjoy real surround sound without additional cables or power connections. Simply place the two detachable battery-powered surround speakers behind you and be amazed by the impressive audio quality.
BAR 1000 Built-in services like AirPlay, Alexa Multi-Room Music (MRM)* and Chromecast Built-in™ - Image
Integrated services like AirPlay, Alexa Multi-Room Music (MRM)* and Chromecast Built-in™
Get ready for the experience. Access to 300+ online music streaming services via AirPlay, Alexa MRM* and Chromecast Built-in™. Enjoy your favorite audio content, internet radio and podcasts in HD quality. The Wi-Fi connection also enables automatic software updates, so you always have the latest features.
Experience movies, music and games with sound that puts you in the middle of the action thanks to 880 W of total power and thundering bass from the 10-inch subwoofer. The JBL Bar 1000 features MultiBeam™ and four high-firing drivers - two in the soundbar and two in the detachable, battery-powered surround speakers - to wrap you in a sphere of Dolby Atmos® and DTS:X 3D surround sound with wide sound without the need to run additional cables. With our PureVoice technology, you won't miss a word again because it ensures that the dialogue remains crystal clear, even when other noises are extremely loud. You can stream your favorite playlist from AirPlay, Alexa MRM, and Chromecast Built-in™—and it'll feel like the band is in your room. take a nocturnal ramble.
General Specifications
Model: CASH 1000
sound system: 7.1.4 channel
power adapter: 100-240VAC ~ 50/60Hz
Power consumption in networked standby: <2.0W
operating temperatur: 0°C - 45°C
Audio Specifications
Total speaker power (Max. @THD 1%): 880W
Soundbar Output Power (Max. @THD 1%): 440W
Surround speaker power output (max. @THD 1%): 2x 70W
Subwoofer Power Output (Max. @THD 1%): 300W
Soundbar speaker driver: 5 x 46 x 90mm Racetrack drivers, 3 x 0.75" (20mm) tweeters, 2 x 2.75" (70mm) full-range up-firing drivers
Surround speaker drivers: Tweeter 0.75" (20mm), Upward Full Range Drivers 2.75" (70mm)
Speaker driver subwoofer: 10 inch / 260mm
frequency response: 33Hz - 20kHz (-6dB)
audio inputs: 1 optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for maintenance only.)
Dimensions
Overall soundbar dimensions (W x H x D): 1194x56x125mm
Soundbar main dimensions (W x H x D): 884x56x125mm
Detachable surround speaker dimensions (each) (W x H x D): 155x56x125mm
Subwoofer Dimensions (W x H x D): 305 x 440.4 x 305mm
weight of the sound bar: 3.7kg
Weight of detachable surround speakers (each): 1.4kg
Weight of the subwoofer: 10kg
Packaging dimensions (W x H x D): 1000x375x475mm
packaging weight: 19.4kg
Control and Connection Specifications
USB port: Type A
USB performance: 5VDC, 0.5A
Supported file format: MP3
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate: 16-48kHz
MP3 Bitrate: 80-320 kpbs
Bluetooth version: 5.0
bluetooth profile: A2DP 1.2, AVRCP 1.5
Bluetooth transmission frequency range: 2400-2483.5MHz
Bluetooth transmission performance: <15dBm (EIRP)
WIRELESS INTERNET ACCESS: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4 GHz WiFi frequency range: 2412-2472MHz (2.4GHz ISM band, USA 11ch, Europe and other 13ch)
2.4GHz wireless transmission performance: <20dBm (EIRP)
5 GHz WLAN frequency range: 5.15-5.35GHz, 5.470-5.725GHz, 5.725-5.825GHz
5 GHz WiFi transmission performance: 5.15-5.25GHz <23dBm, 5.25-5.35GHz and 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
2.4G wireless frequency response: 2406-2474MHz
2.4G wireless performance: <10dBm (EIRP)
Battery Pack
Lithium-ion battery: 3.635V, 3283mAh

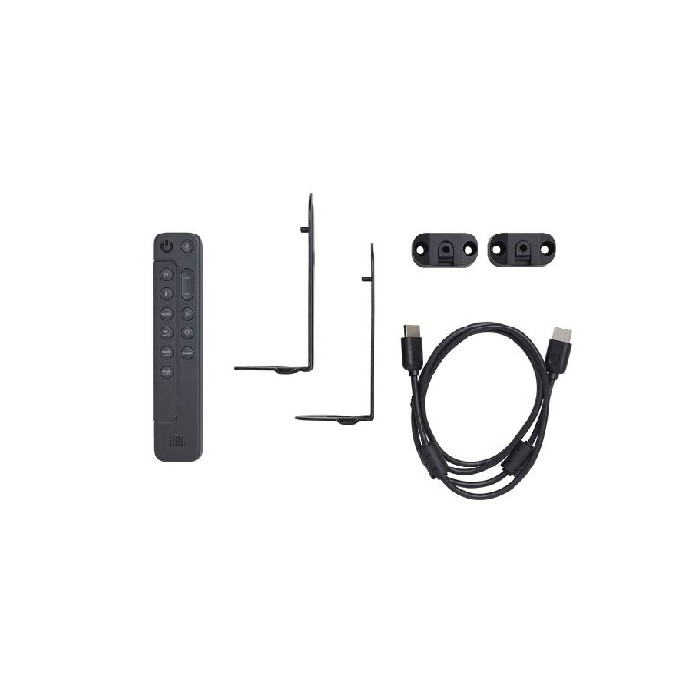

In the box
1x main soundbar
2x Detachable wireless surround speakers
1x wireless subwoofer
Remote control with 2 x batteries
Power cord (up to 8 pieces, depending on region)
1 HDMI cable
2 x L-Shape Wall Bracket (Main Soundbar) + 2 x U-Shape Wall Bracket (For Surround Speakers) with screws
4 x Side Caps
quick start Guide
safety instructions and warranty card
Wall mount template
