Product Description
The Siemens EC6A5HI90 gas hob features an exclusive and refined design of the stainless steel surface, safe and durable. The revolutionary stepFlame technology allows you to obtain the desired results with maximum precision.
General
Main surface material: stainless steel
Main color: stainless steel
Frame type: Frameless
Flush Mount: No
Support grid material: cast iron with rubber feet
Flat burner: No
Technical specifications
Gas type: Natural gas H/E/(L) 20 (25) mbar
Alternative gas type: methane L/LL G25/20mbar (DE), methane H 25 mbar (HU), methane L 25 mbar (NL), liquid gas G30,31 28-30/37mba, liquid gas G30 37 mbar (PL), liquid gas 50 mbar
Nozzle set included for alternative gas type: Liquid gas G30,31 28-30/37mbar
Dimensions
Width (cm): 60 cm
Dimensions (HxWxD): 51.5x582x520 mm

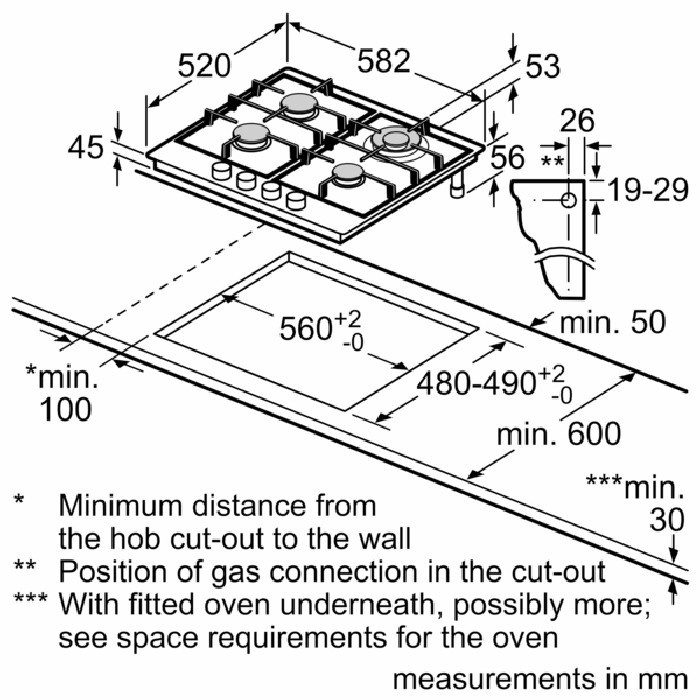

Installation compartment dimensions (HxWxD): 45 x 560-562 x 480-492 mm
Minimum thickness of the worktop: 30 mm
Power cord length: 100.0 cm
Plug type: Without plug (electrical connection by an electrician)
Performance
Gas connection rating: 8000 W
Total number of positions that can be used simultaneously: 4
Dual wok burner: no
Cooking zone power: 1 x 1.0 KW, 1 x 3.5 KW, 2 x 1.75 KW
Cooking zone type: Semi-rapid flame, Semi-rapid flame, Auxiliary flame, Triple crown wok flame
Comfort
stepFlame - Precise flame adjustment: Yes
Display: No
Dishwasher safe grids: Yes
Control panel location: Front
Control Panel: Removable, Jumper Knob, Front
Hob ignition: Knob ignition
Monoblock burner: No
Connectivity
Home Connect for Wi-Fi connection: no
cookConnect System - Hood control from the hob: No
Intelligent hood automatic: No
Smat Home Trigger for custom configuration: No
Software update possibility (available for Home Connect accounts): Product always up to date with the latest software: No
Safety
Safety device: GasStop thermosafety
Residual heat indicator: None
Main on/off switch: No
Optional accessories (contact us for more information)
HZ298105 Slow cooking plate
HZ298107 Wok Ring
HZ298114 Small pot ring (not domino)
HZ32WA00 Wireless Thermometer
HZ9SE040 4-PIECE COOKWARE SET
HZ9SE060 6-PIECE COOKWARE SET
Stainless steel color coating
The unique and exquisite stainless steel surface design, safe and durable.
StepFlameTechnology
With the new gas hobs from Siemens, cooking delicious dishes has never been easier, thanks to the revolutionary stepFlame technology, which allows you to obtain the desired results with maximum precision.
Data sheet
EAN 4242003949207
Model EC6A5HI90
Line Iq500
Category Gas hob
Type of collection Collection
Multiple crown 1
Built-in measure 56 x 48 cm / 56 x 49 cm
Other Front controls
Finishing Stainless steel
Width 59 cm
Number of fires 4
Depth 52 cm
Power 8000 W
Commands Knobs
Grills Cast iron
