Product Description
The Siemens ED811BS16E induction hob with integrated hood contains the power, elegance and practicality of two products in one. With InductionAir Plus the suction is silent and if you are in a hurry you can activate PowerBoost available in all 4 positions.
General
Product type: induction hob
Material: glass ceramic
Black colour
Width: 80cm
Dimensions of heating elements: 1 x (38.0 x 21.0 cm), 1 x 18.0 cm, 1 x 21.0 cm
Power of heating elements: 1 x 1.8 (3.1) kW, 3 x 2.2 (3.7) kW
Frame Type: Frameless
Number of induction plates: 4
Heating with booster: all
Control: front front
Efficiency
Max. air extraction: 500 m3/h
Push position air extraction: 622 m3/h
Max. recirculation: 441 m3/h
Increase position output recirculation: 595.0 m3/h
Sound power at maximum speed (2010/30/EC): 69 dB
Sound power (2010/30/EC): 74 dB
Noise level: 69 dB(A) re 1 pW
Hob energy consumption: 178.3 Wh / kg
Accessories
1 x Slider for non-ducted recirculation
1 x Clean Air Plus Odor Filter

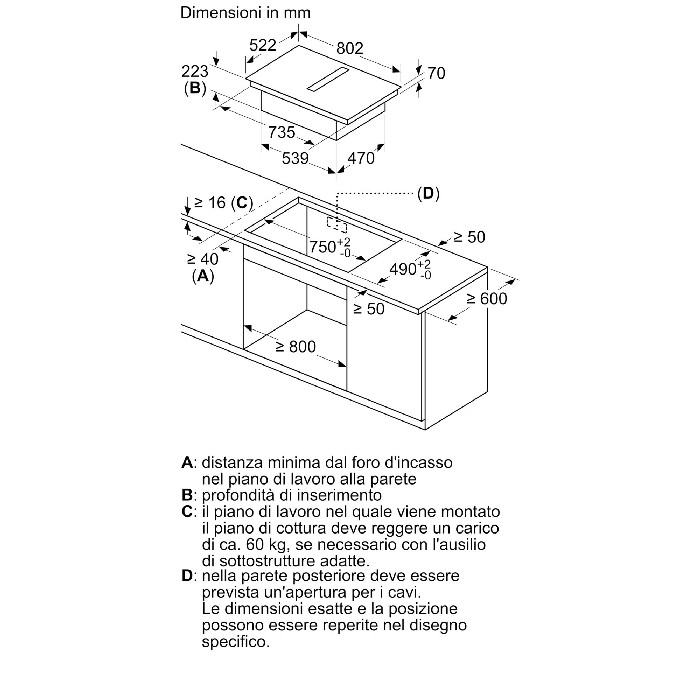

Dimensions and weight
Product dimensions (hxwxd): 223 x 802 x 522 mm
Minimum height for installation: 490 mm
Maximum installation height: 490 mm
Minimum width for installation: 750 mm
Maximum installation width: 750 mm
Installation depth: 223 mm
Height of the appliance above the worktop: 6.0 mm
Connection
Connection: 7,400W
Rated power: 220-240/380-415V
Electrical power cable length: 110.0 cm
Plug type: no plug (electrician connection)
User manuals included: [DA, DE, FI, FR, NO, SV]
Performance
User Interface: TouchControl
Hotplate control settings: 17 power levels
Flexibility of the cooking zone: Combustion zone
PowerBoost: yes
ActiveLight Plus: no
FryingSensor Plus: no
Infrared cooking sensor: no
KitchenSensor Plus ready (sensor available as additional purchase): no
Powermove by Powermove: no
flexMotion: no
Quick Start: Yes
Keep warm function: no
Timer: yes
Connectivity
Home Connect: no
Standby/display off power consumption: 0.2 W
Autostandby time/avail. Off: 20.0 min
Safety
Residual heat indicator: Separate
Safety features: Childproof lock, pan recognition, Power management function, safety time
Optional accessories (contact us for more information)
HZ390090 Wok set consisting of 3 items
HZ9ES100 Moka Espresso 4 cups
HZ9FE280 Iron pan Ø 18 / 28 cm
HZ9SE030 Set of 2 pots and 1 pan
HZ9SE040 Set of 4 pieces
HZ9SE060 Set of 6 pieces
HZ9VDKE1 Exhaust kit
HZ9VDKR0 Recirculation kit 2 L-bends (70 cm),
HZ9VDKR1 Arco S and L recirculation kit (60 cm)
HZ9VDKR2 Recirculation kit 1 x L-bend
HZ9VDSB1 Bend for horizontal 90° flat duct
HZ9VDSB2 Flat duct 90° L vertical
HZ9VDSB3 Flat duct 90° M vertical
HZ9VDSB4 Flat duct 90° S vertical
HZ9VDSI0 Flat round adapter
HZ9VDSI1 90° round flat adapter
HZ9VDSM1 Straight tube 500mm
HZ9VDSM2 Straight tube 1000mm
HZ9VDSS1 Connector sleeve (female)
HZ9VDSS2 Flexible connecting piece
HZ9VEDU0 Acoustic filter
HZ9VRCR1 Clean Air Plus filter (replacement)
HZ9VRPD1 Air diffuser

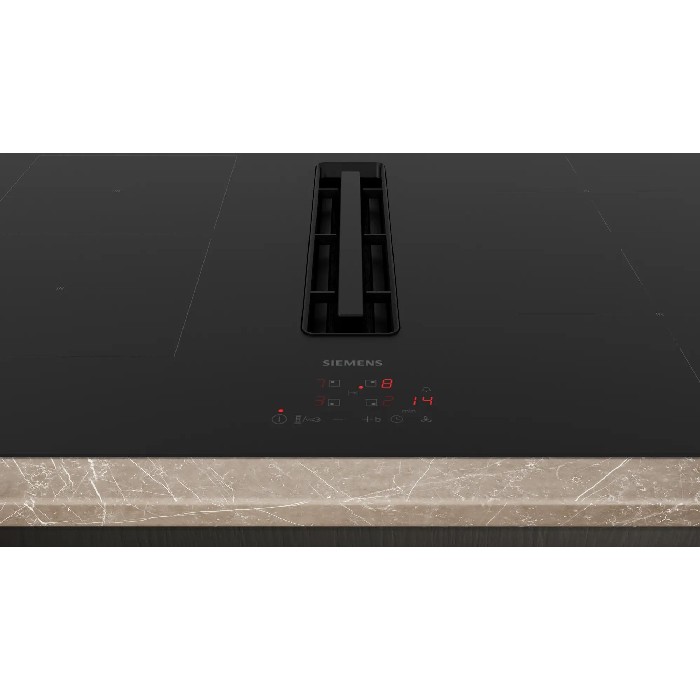

TouchControl
TouchControl makes controlling your hob particularly convenient, just with the touch of a finger.
InductionAir Plus
InductionAir Plus guarantees minimal noise without compromising suction power.
InductionAir Plus supports you in being the perfect host as it always guarantees fresh air without odors or grease at the slightest noise.
Ultra-easy cleaning
With inductionAir, there is a triple overflow protection system that helps prevent liquids or other spills from entering the hob. If something spills into the unit, you can simply open the dishwasher grease filters for easy cleaning.
PowerBoost
Use powerBoost to increase the power of an induction zone by up to 50%. This could save you up to 35% of the time it usually takes to heat pots. Spend less time waiting and more time mixing, seasoning and serving your brilliant meals.
Timer
The timer with shut-off function safely turns off the cooking zone when the selected cooking time expires.
Childproof lock
With the childproof lock button, you can quickly and easily protect every induction hob from unauthorized operation. The childproof lock blocks all hob functions at the touch of a button. The lock is released by pressing the button again and holding it for a few seconds.
PowerInduction
Instantly hot. Immediately cold. Discover the advantages of Siemens powerInduction. The heat is conducted directly to the pans and their contents via induction coils, without heating the hob. What this means for you: Heating times are short, safety is increased and the hob is much easier to clean.
Data sheet
EAN 4242003946268
Model ED811BS16E
Line Iq300
Category Induction hob
Type Integrated hood
Type of collection Collection
Semi-wire
Built-in measure 75 x 49 cm
77 x 51 cm
Other Front controls
With integrated suction
Flex zones
Finishing Black glass ceramic
Width 80 cm
Number of fires 4
Depth 52 cm
Power 7400 W
Flow 500 m3
Commands Touch control
Absorption 8.40 kW
